AV TO RF Modulator IR Remote Control Range Extender Analog TV Self-Produced Program TV LINK Insertion Device TV

Specifications

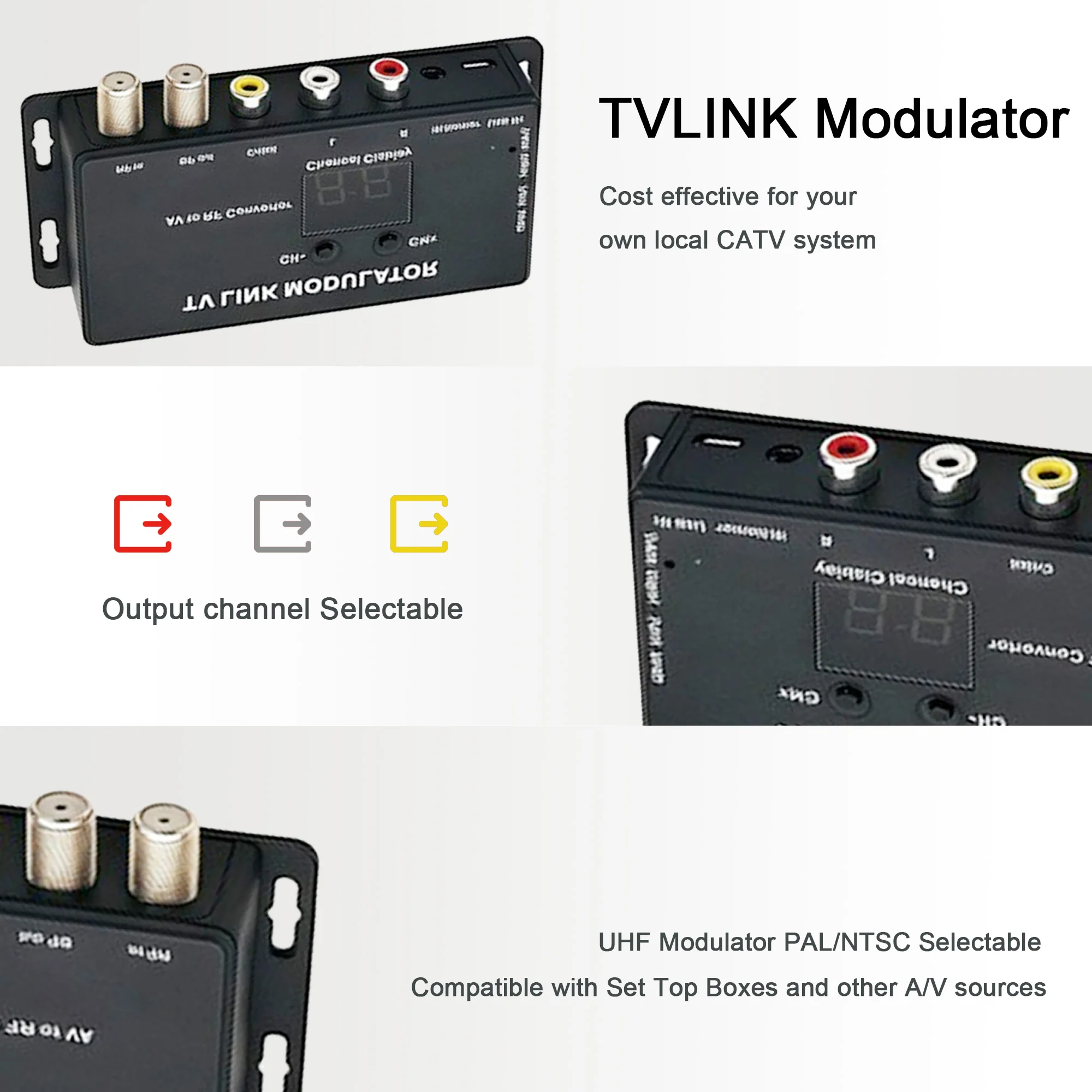

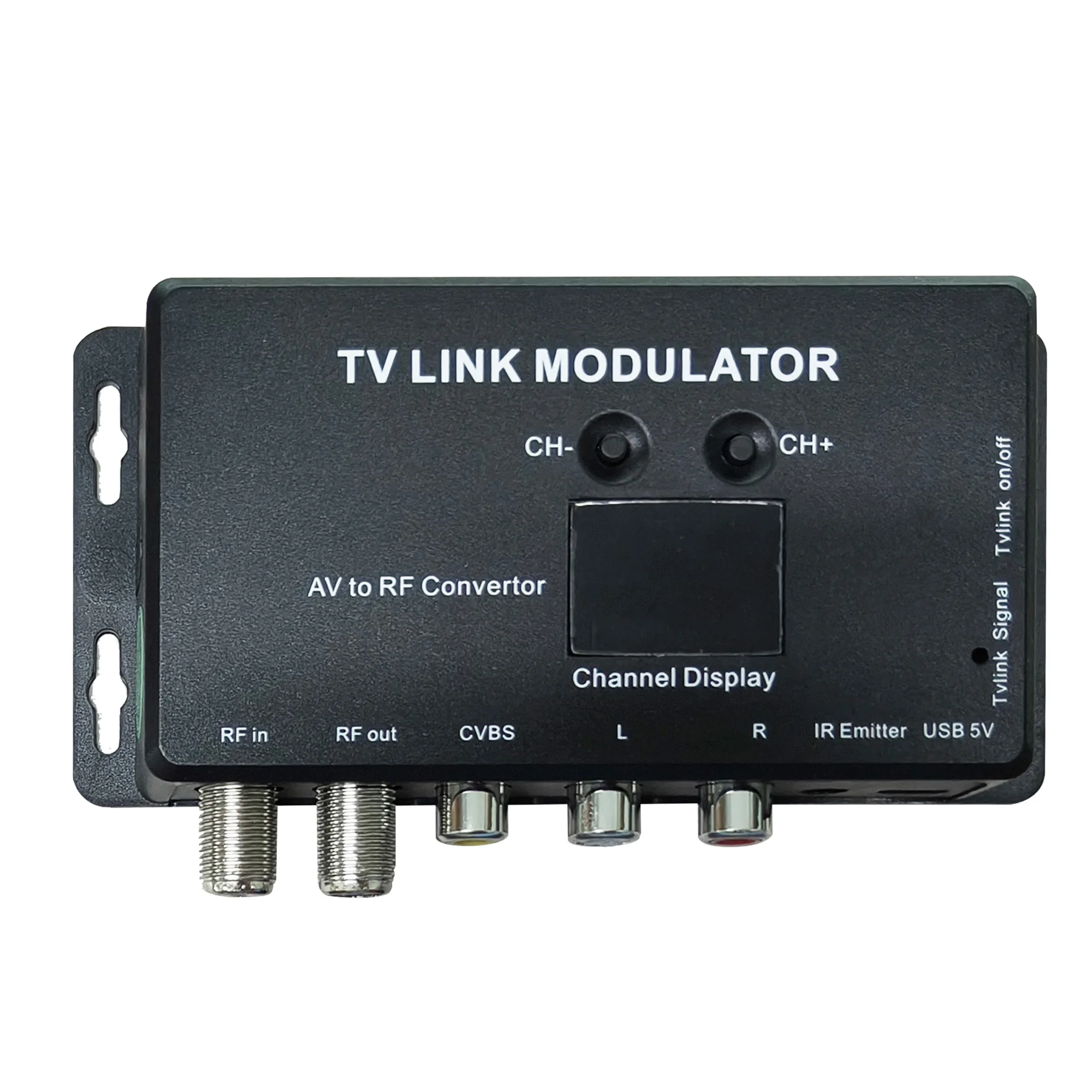

Production :TVLINK Modulator
Features:
1. Cost effective for your own local CATV system
2.Compatible with Set Top Boxes and other A/V sources
3.UHF Modulator PAL/NTSC Selectable
4.Output channel Selectable5. RF Outputs for use with SLX and Tv-Links
Specifications:
ITEM
MODULATOR
Standard
channel Range
Output level
Sound system
A'y connector
RF Input
RF Output ( DC output)
TLMO1
PAL /NTSC
UHF 21~69
85+5dBuV
M=4.5MHz、B/G=5.5MHz、I=6.0MHz、D/K=6.5MHZ
RCA female
F-female
F-female (Dc output : 9vDc/100m)
IR EMITTER
Remote control Frequency
Remote Distance
Default Factory setting
Power Consumption
Operating Temperature
Dimension/Weight
Carton Size/ Quantity
38KHz/56KHZ
8m
channel 21(471.25MHZ),PAL/I /38KHz
USB5V@400mA
0°C~ +409C
9.6*11.8*2.5cm/ 0.125 KG(IR+USB)
50*25.5*28.5CM /100 PCS/13KG
