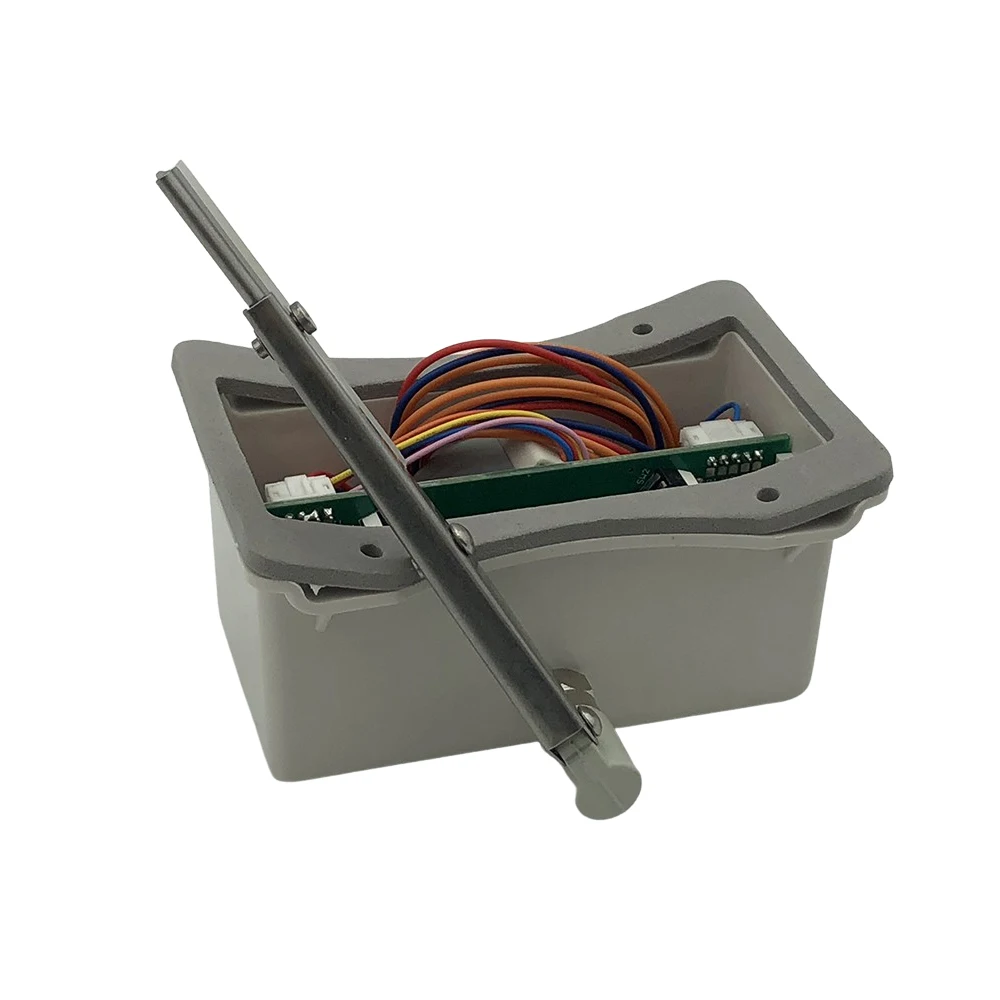

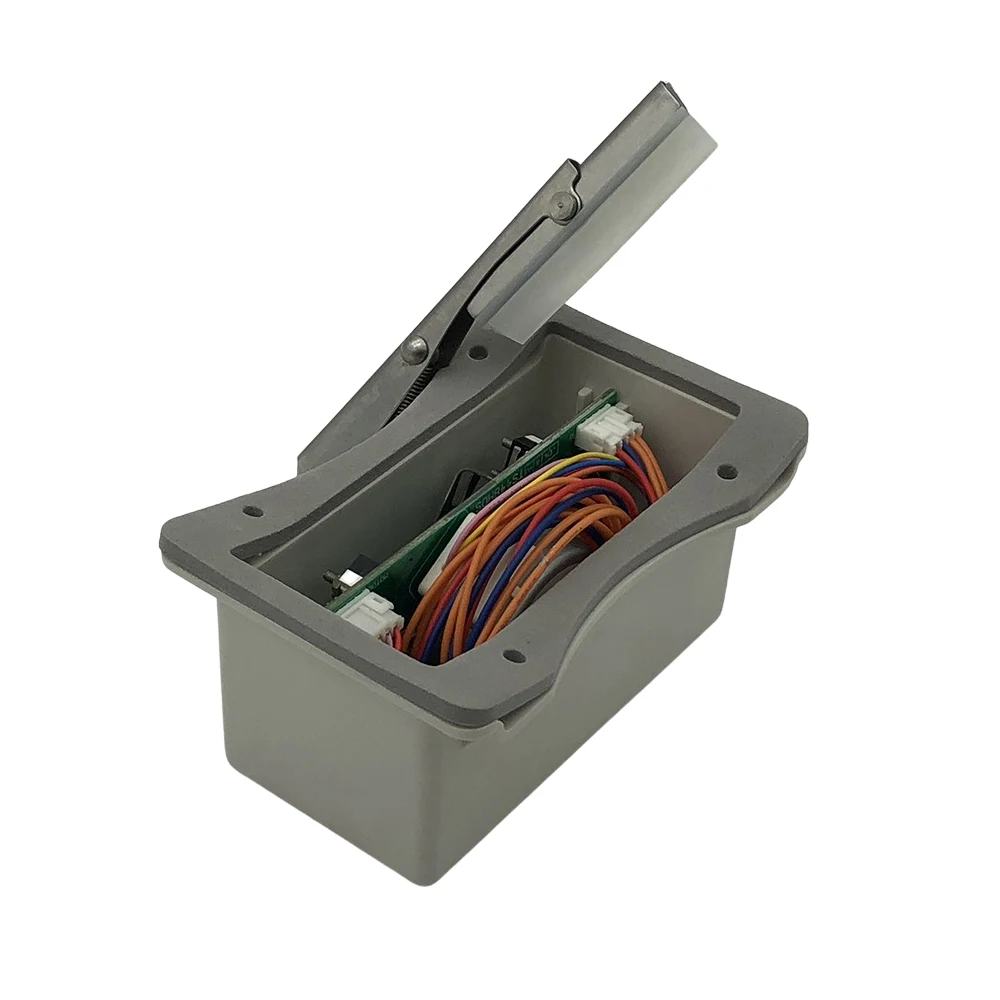

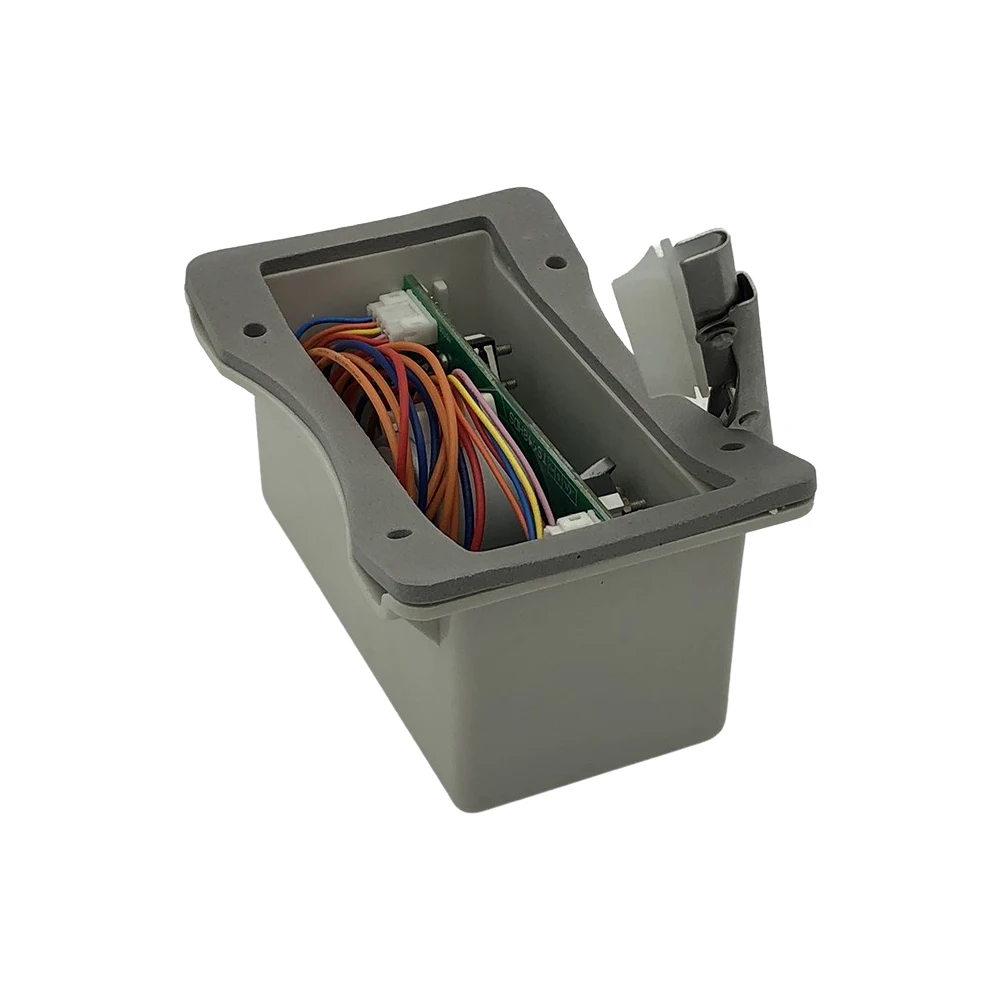

DC 12V DC 24V AC 24V Waterproof Surveillance Camera Rain Guard Motor Wiper For CCTV Camera Housing Security Camera’s Case Shell

Description

Must read before purchase:

The wipers in the link have three different voltages, namely DC12V, DC24V, and AC24V.

The appearance of DC12V and DC24V is the same, with RS485 control line.

AC24V does not have an RS485 control line.

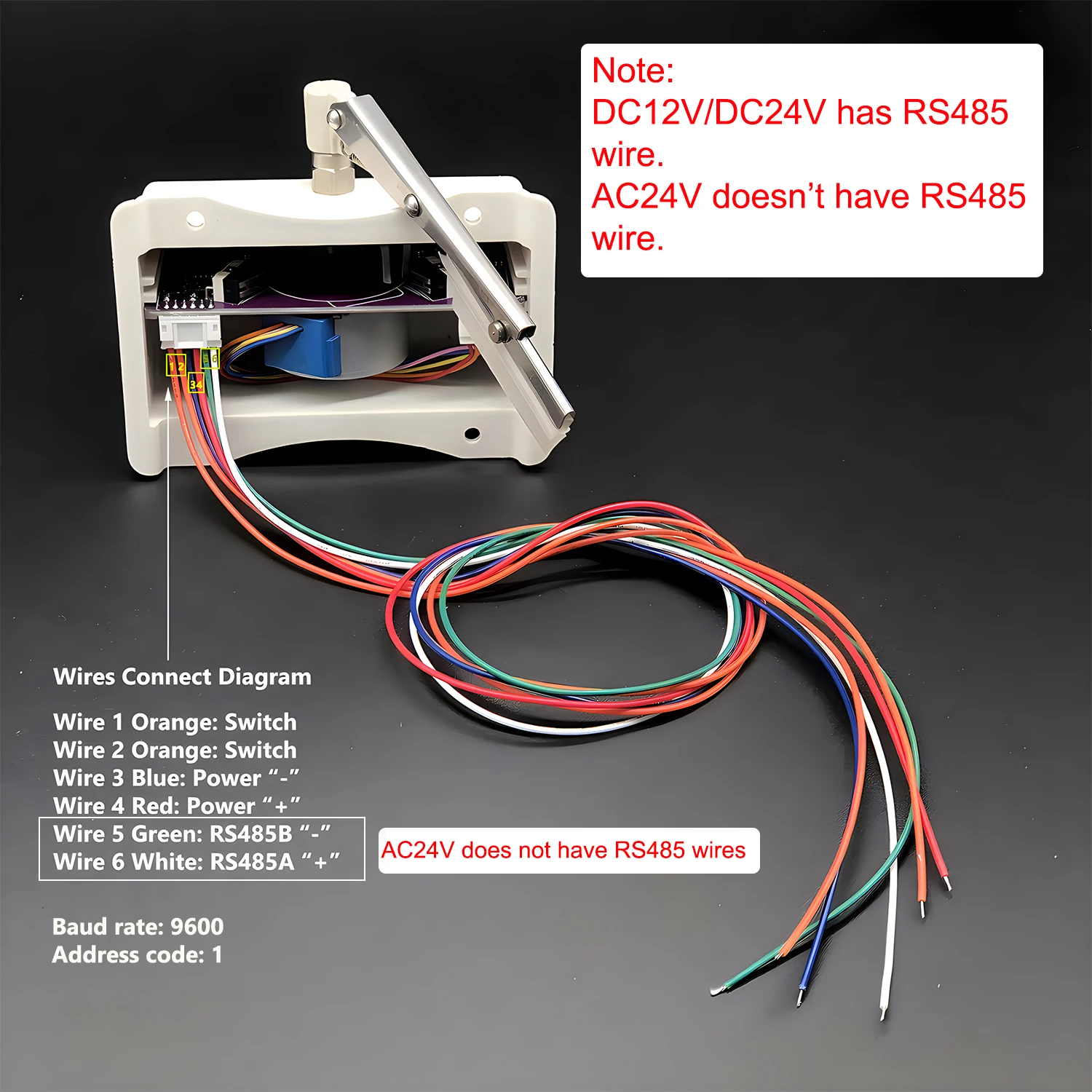

DC12V, DC24V wiring instructions:

1. Power wires: Red color wire positive, Blue color wire negative

2. Orange color -Orange color wires: Switch wires

Connect it, the wiper will start working; Disconnect it, the wiper will stop at the end

3. RS485 wires: White color wire positive RS485 "A", Green color wire negative RS485 "B"

4. Baudrate: 9600; Address 1; Protocol: Pelco D/P

AC24V wiring instructions:

1. Power AC24V: Red color positive "+", Red color negative "-"

2. Black color- Blue color wires: Switch wires

Connect it, the wiper will start working; Disconnect it, the wiper will stop at the end

3. Baurate: 9600, address 1, Protocol: pelco D/P
