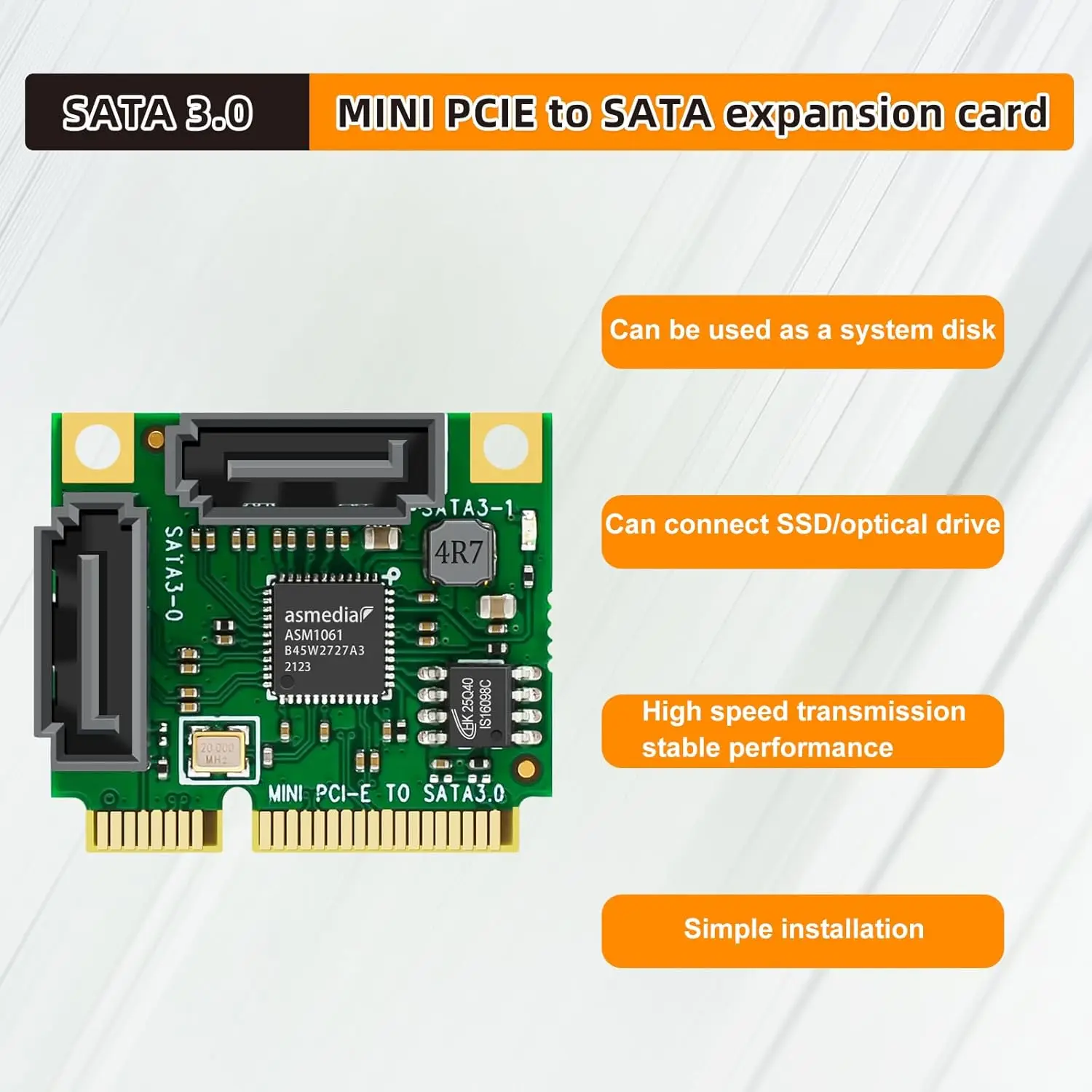

Mini PCI-E to SATA 3.0 Adapter Card – 2 Port 6Gbps Expansion Converter for SSD/HDD,Bootable System Drive for Laptop/Computers

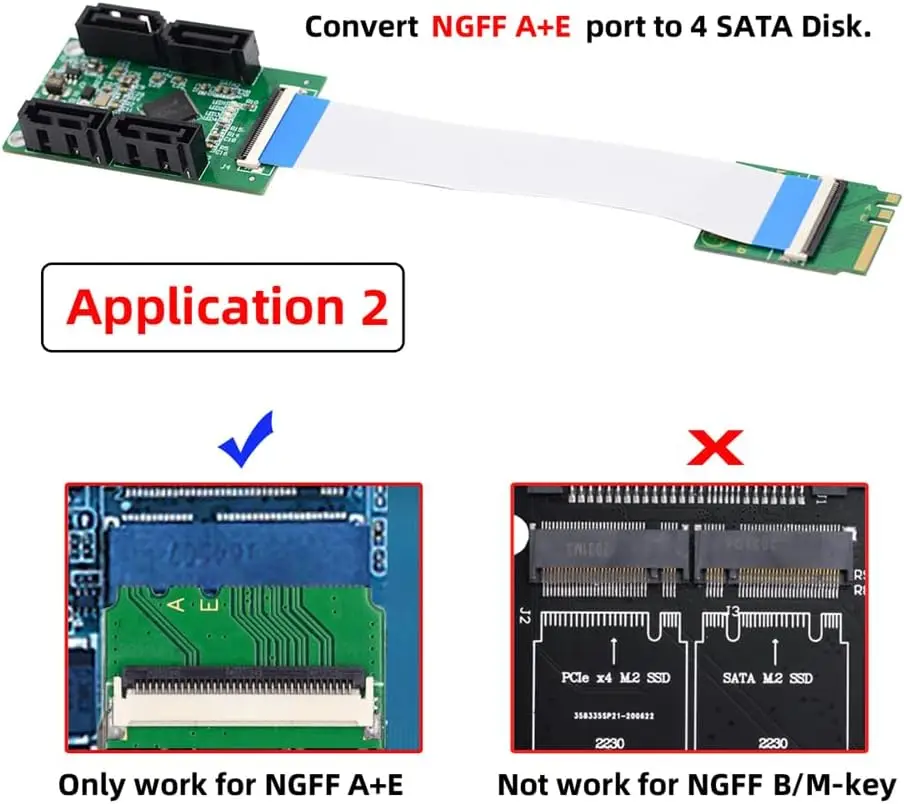

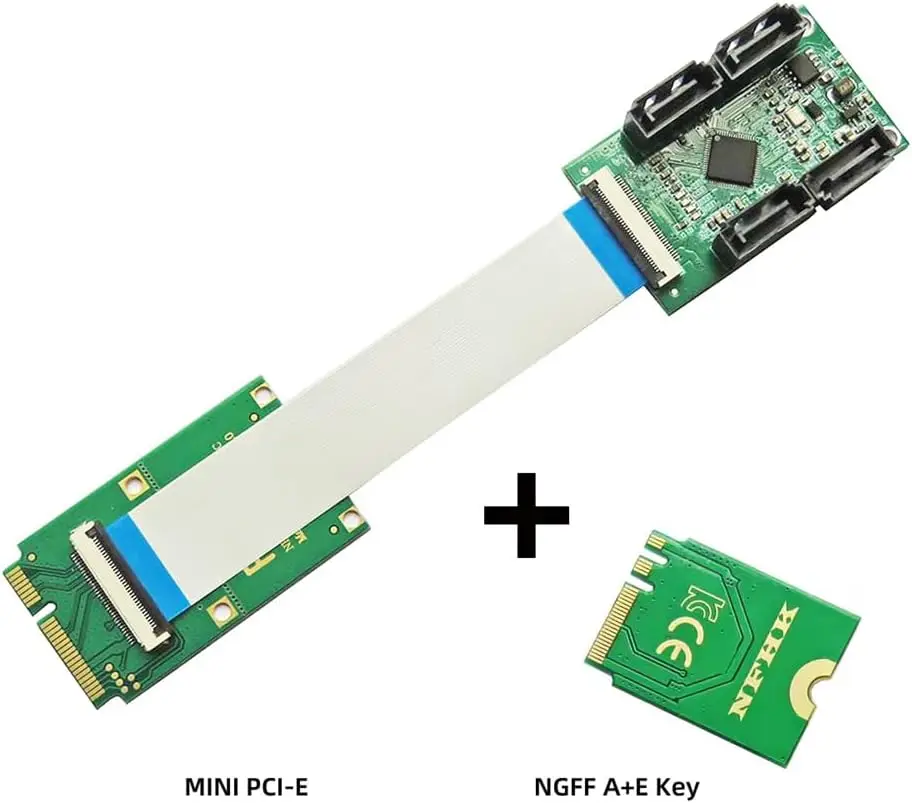

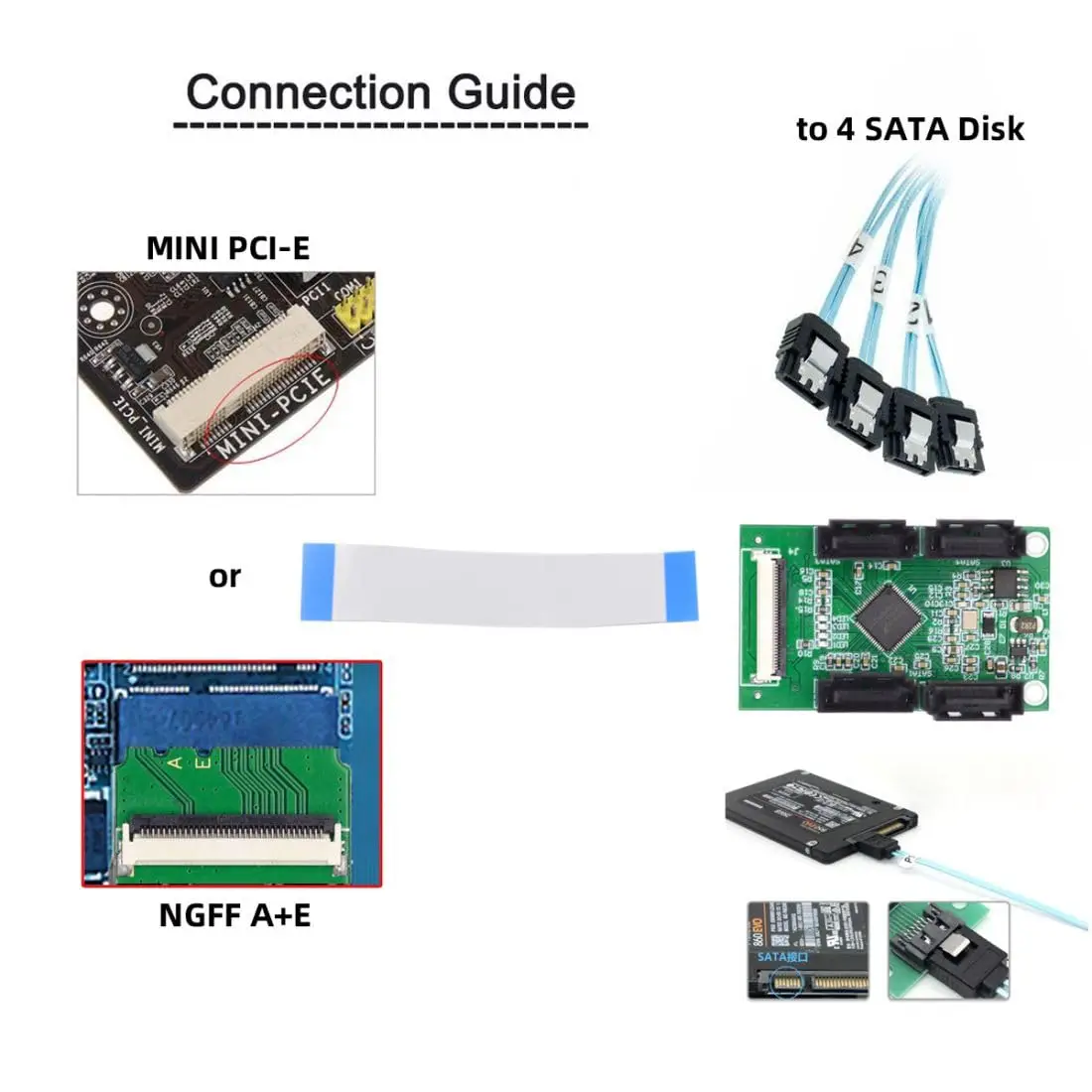

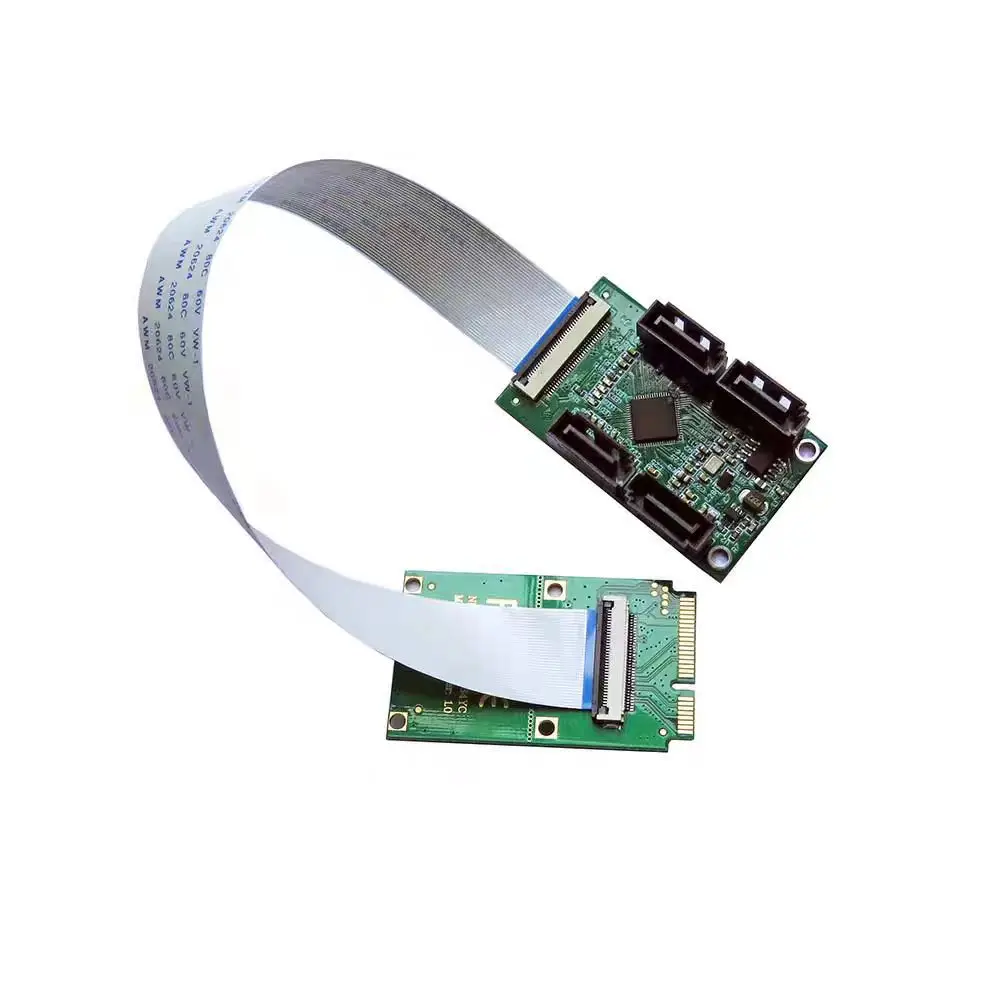

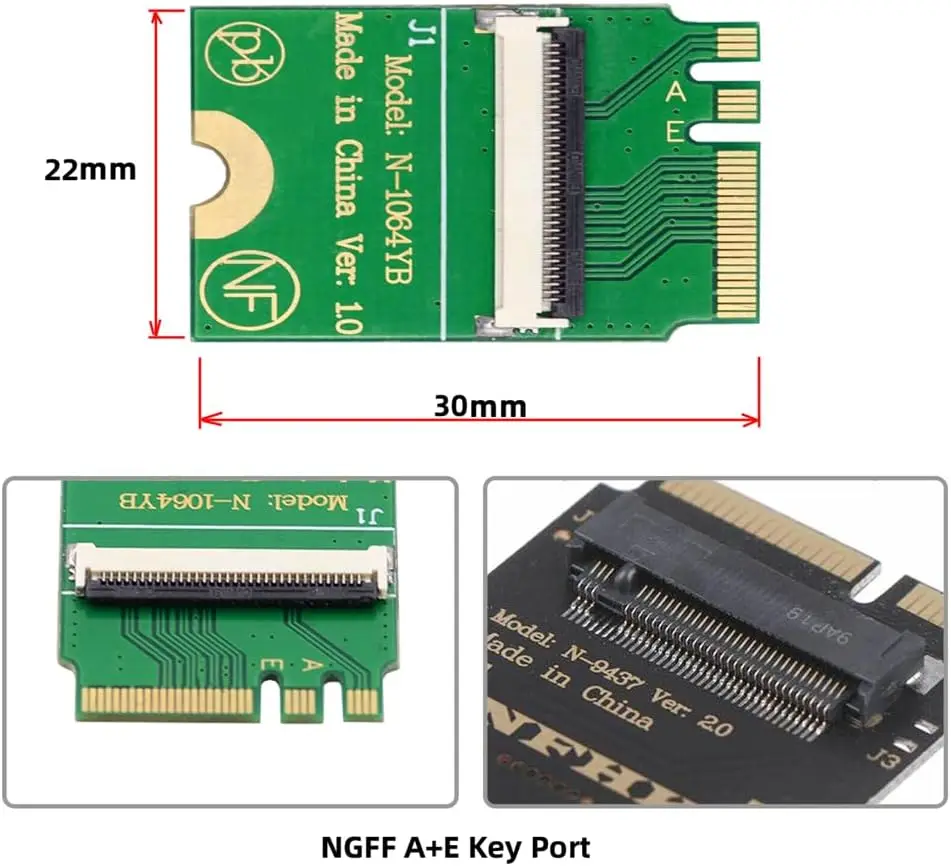

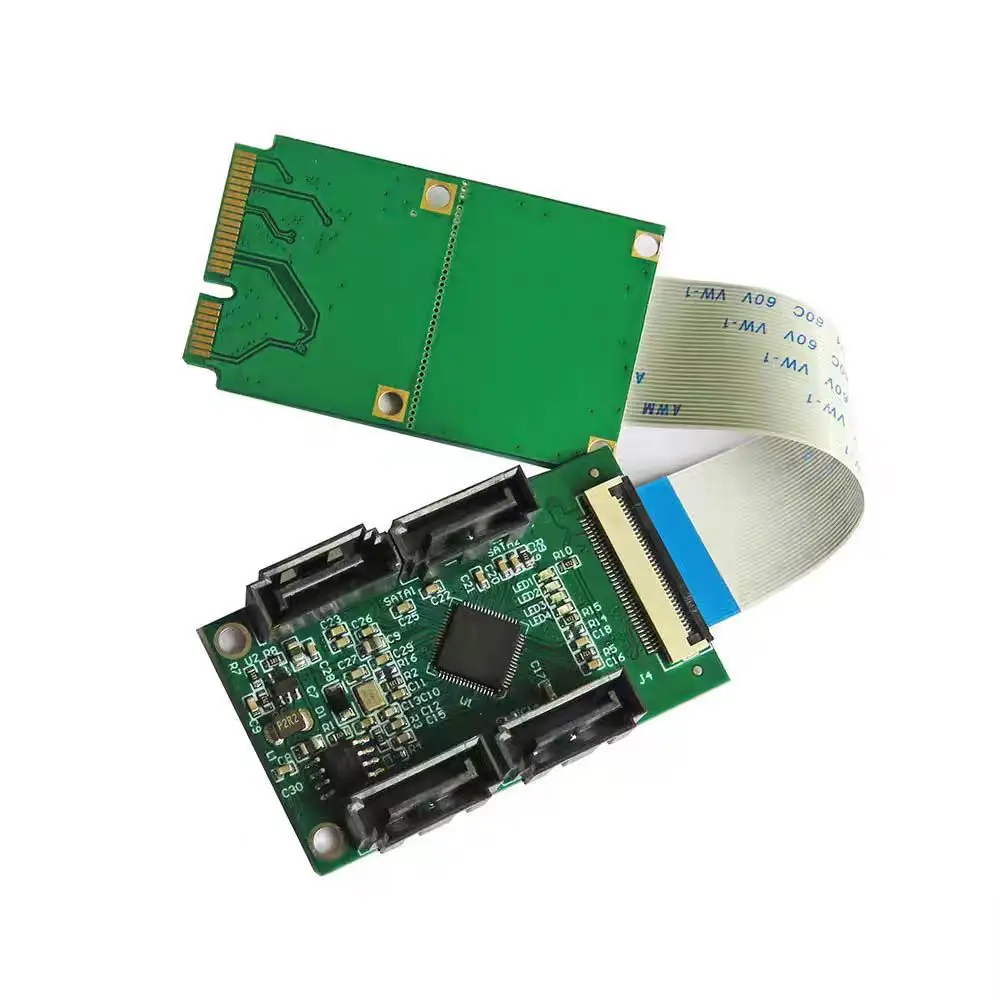

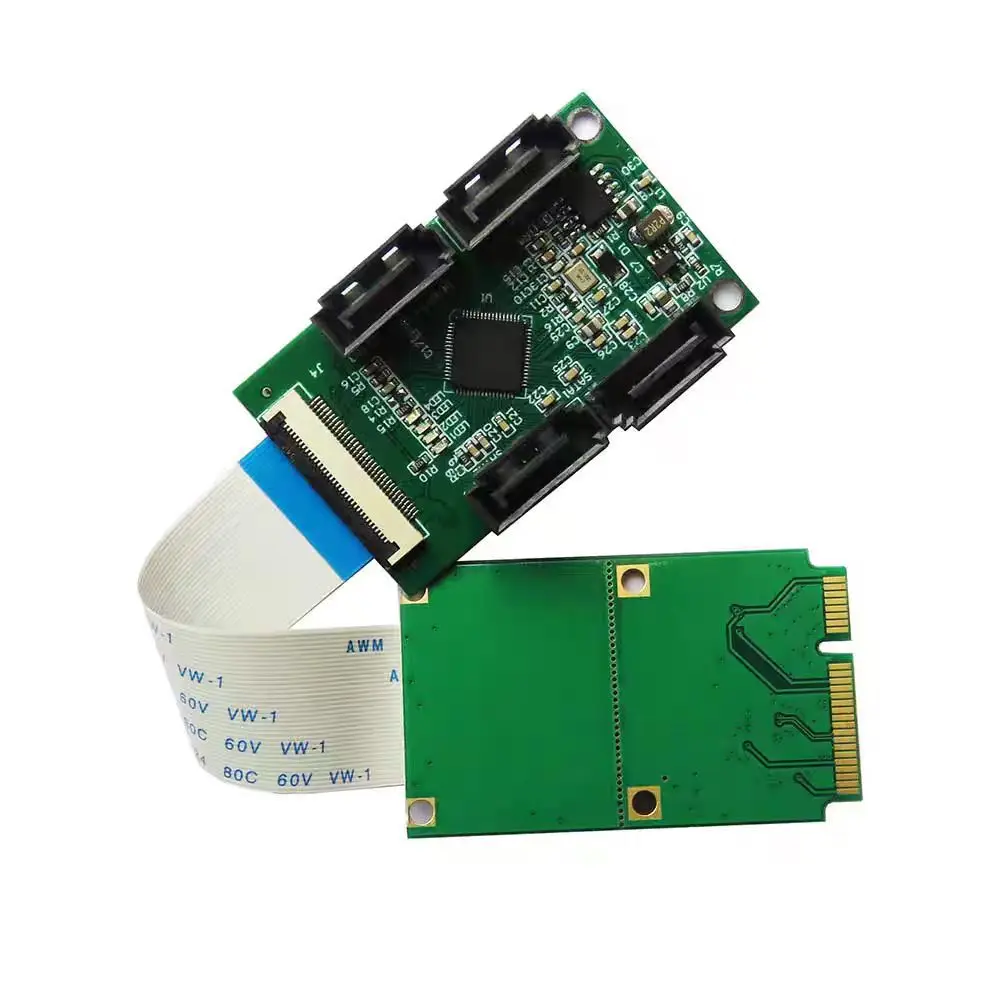

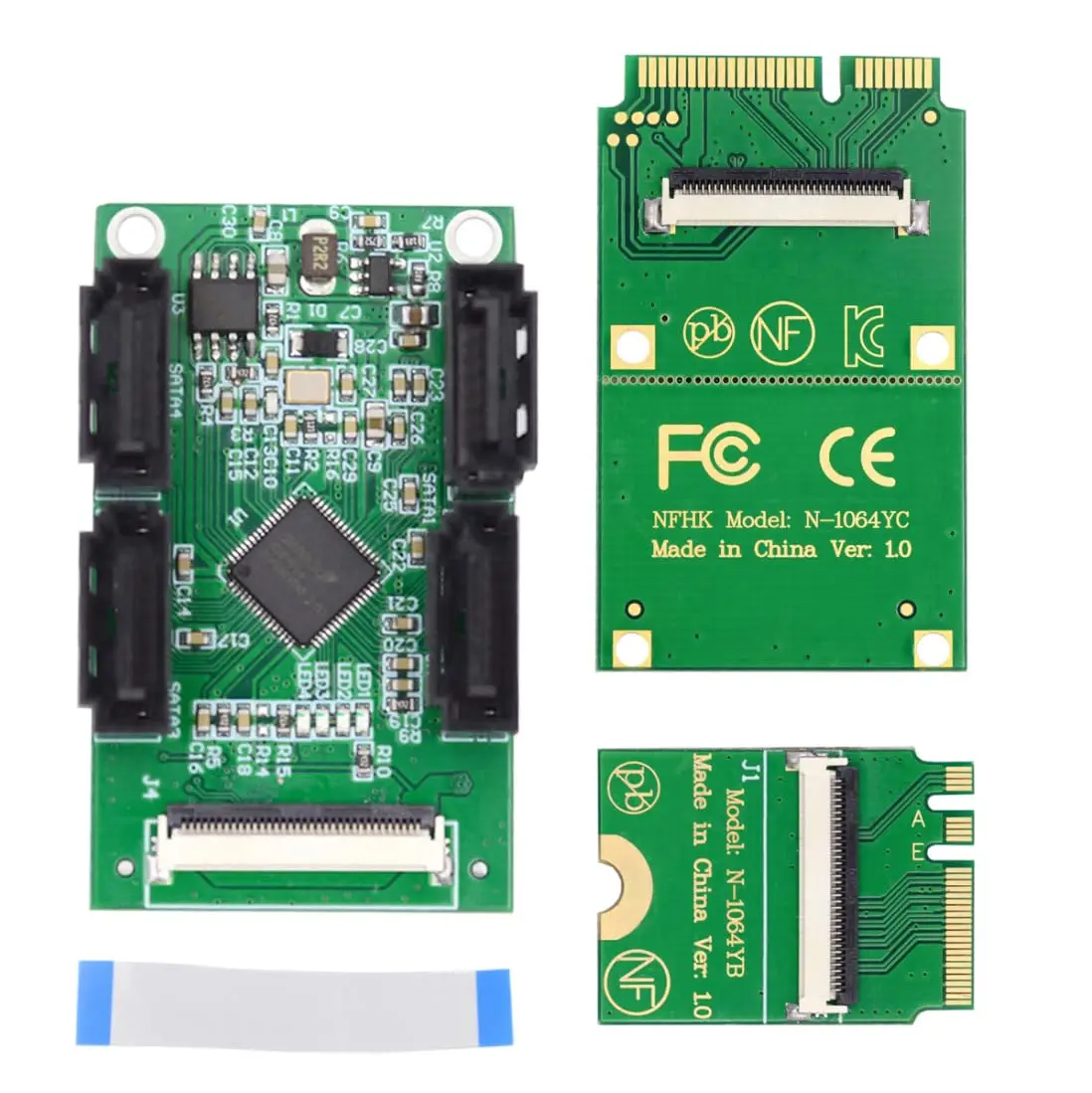

Mini PCI-E/M.2(A+E Key) to 4 SATA 3.0 Extension Card Adapter for Motherboard SATA Hard Drive Port Extension with 10cm Flat Cable

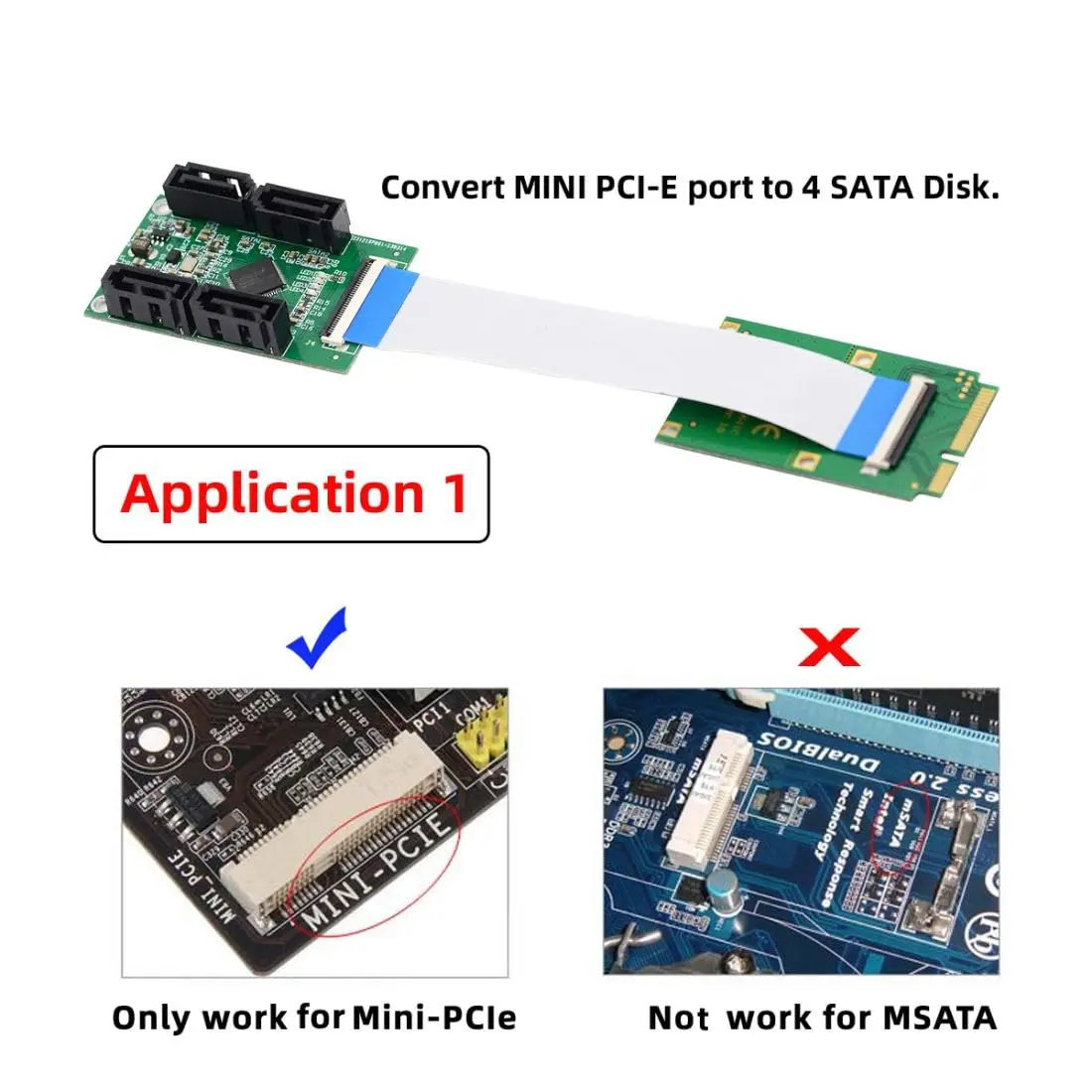

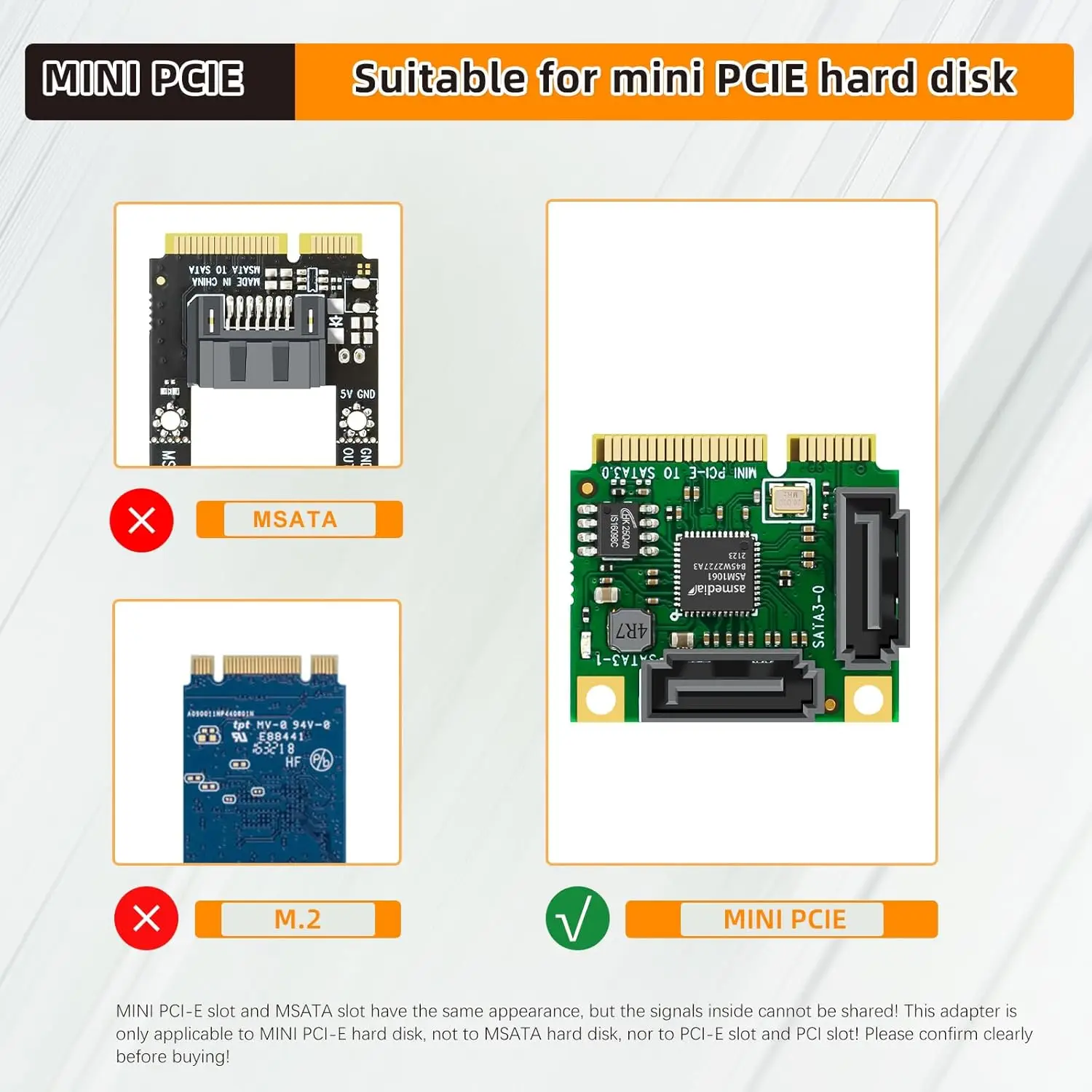

This product is only suitable for standard mini PCI-e slots and cannot be used for MSATA or wireless network card slots, nor can it be used for PCI-e slots and PCI slots!!!
The Mini PCI-Express SATA expansion card can expand to 2 or 4 SATA3.0 interfaces and uses the native PCI Express 2.0 bus. The card supports SATA6Gbps devices that comply with the SATA3.0 specification, as well as backward compatibility with SATA 15Gbps and 3.0Gbps devices
Functional features
2-channel M.2 PCI-Express 2.0 interface B+M Key.
Supports PCI-Express data transfer rates of up to 5.0/2.5 Gbps.
Support providing IDE programming interface registers for SATA controllers.
Support providing AHCI programming interface registers for SATA controllers.
Support Message Signal Interrupt (MSI)
Complies with serial ATA specification 3.0.
Supports communication speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps.
Supports programmable transmitter signal levels.
Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Supports 2/4 SATA ports.
Support native command queue (NCQ)
Add based on FIS port
Note: RAID for PM is not supported
SATA controller
Compliant with serial ATA specification 3.1, supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps, supports programmable transmitter signal levels, supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i, supports four SATA ports, supports AHCI 1.0 and IDE programming interface, supports local command queue (NCQ), supports port based FIS switching or command based switching, supports partial and sleep power management status, supports interleaved rotation, supports AES-256 ；
